Our aluminum extruded channels are great for all types of signage applications when you need to slide substrates, up to 1/8" thick, in and out.



We have edge (J) rails and divider (T) rails, which are designed to be used together.  Both have recesses that run the length of the extrusion so that you can use pop rivets if needed and still slide your substrate over the top.



We also carry an (H) rail divider that has a an equal top and bottom width.  These come in very handy when you are using clear or translucent materials and don't want the bottom to be visual.



We carry all three shapes in mill finish and architectural black anodize.



If you are looking to customize your sign designs with some stacking strips,  we carry three (3) sizes of our tongue and groove stacking aluminum Carriers.  Ten (10') foot mill finish lengths.

5/8" Carrier holds 1/2" Inserts

1/2" Carrier holds 3/8" Inserts

   1" Carrier holds .80" Inserts

  • J Rails = 7 foot Lengths
  • T Rails = 6 foot Lengths
  • H Rails = 10 foot Lengths
  • 1/2" Carrier
  • 5/8" Carrier
  •    1" Carrier

All 10 foot lengths




Aluminum Carriers Dimensions

Examples

End Cap Aisle Signs
End Cap Aisle Signs with Slots for Changeable Item Inserts.

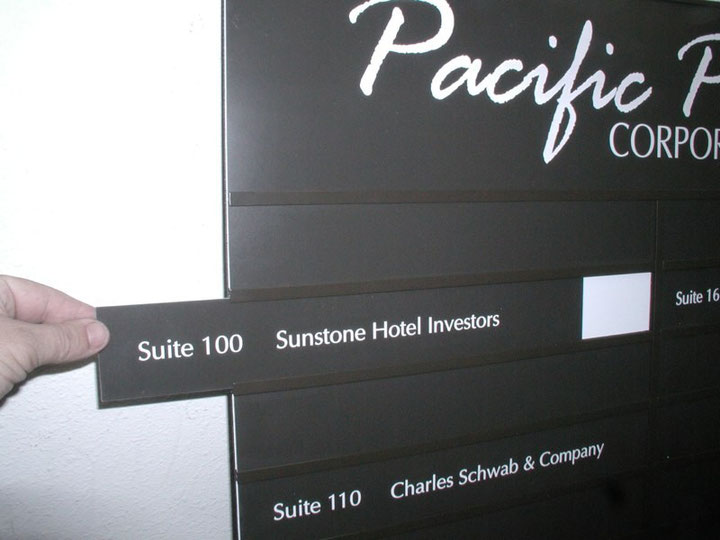

H Rails
H Rails for Large Inserts
J & T Extrusions

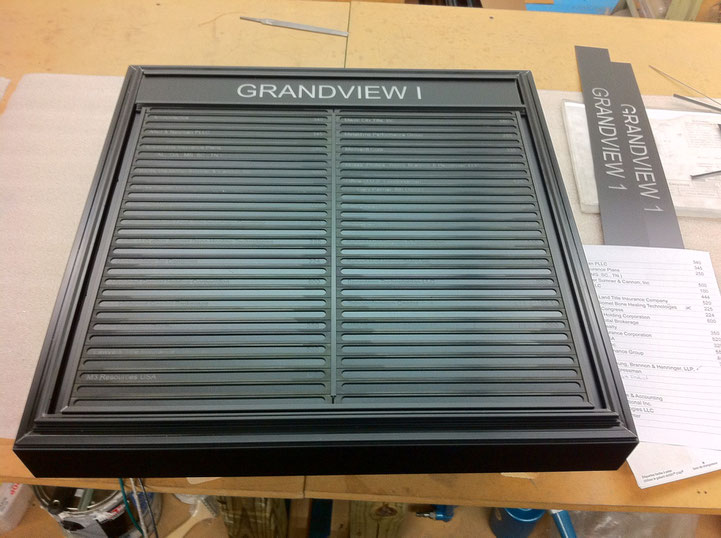

J and T Rails creating Header and columns of Carriers

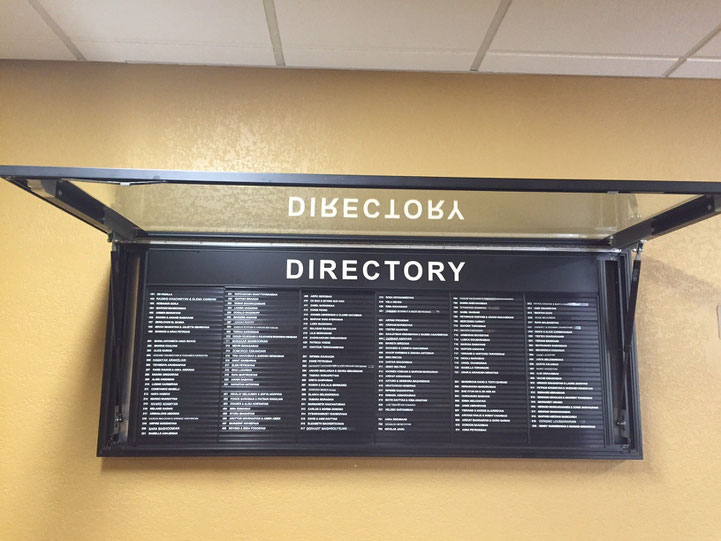

J and T Rails to create Header and six columns of solid Carrier strips (Non-illuminated)
J and T Rails to create Header and six columns of solid Carrier strips (Non-illuminated)
J and T Rails with solid Carrier strip in a top light application.
J and T Rails with solid Carrier strip in a top light application.
J Channel Extrusion
J Channel Extrusions used to create areas for different elements.
Stanchion
Stainless Steel Stanchion with J channel pockets.
